Doysis: form, fill, seal stand-up pouches

Flexible pouch forming, filling and sealing machine Doysis
Flexible pouch forming, filling and sealing machine Doysis

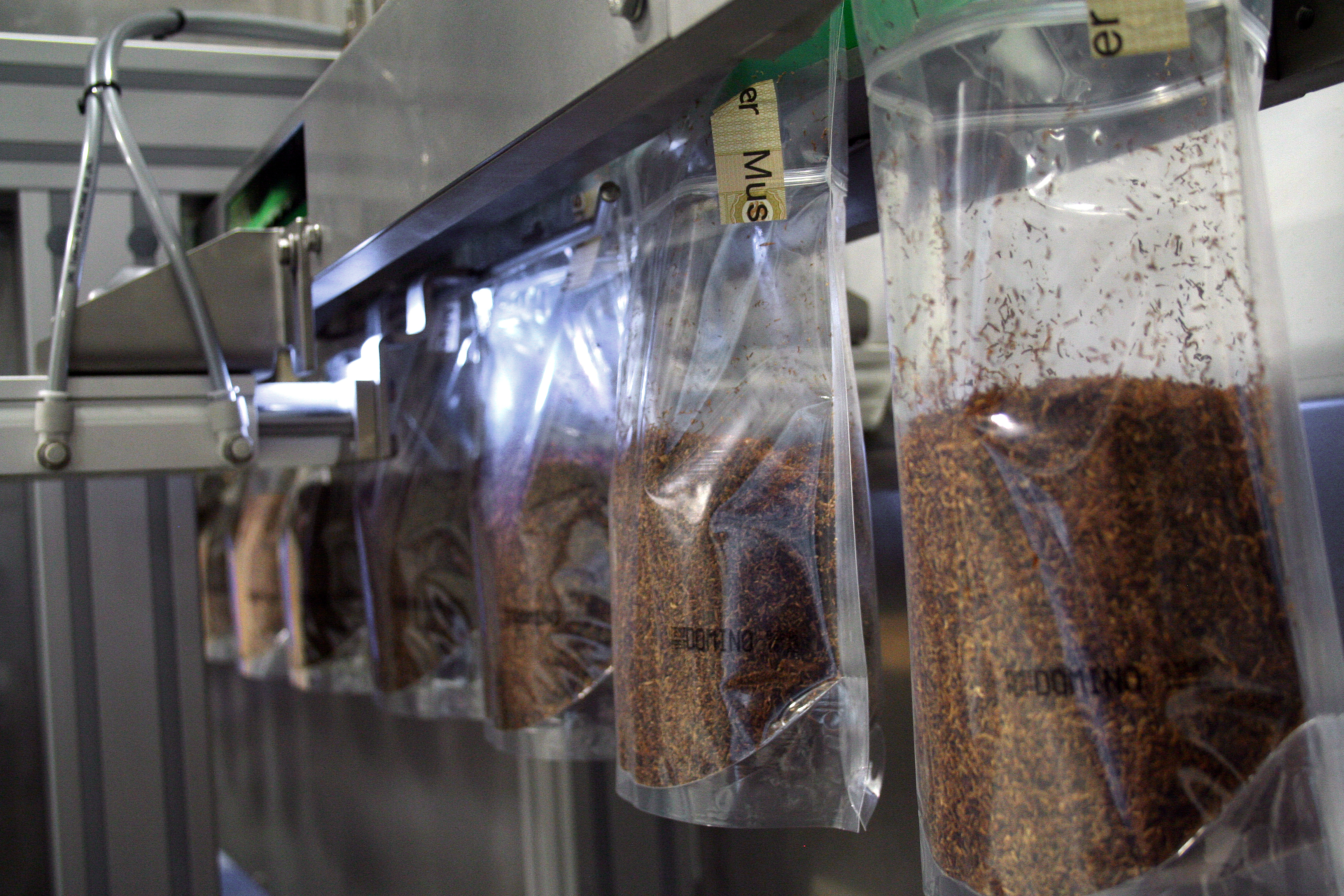

Doysis  handling stand-up pouches
Doysis handling stand-up pouches
Flexible pouch forming, filling and sealing machine Doysis
Flexible pouch forming, filling and sealing machine Doysis

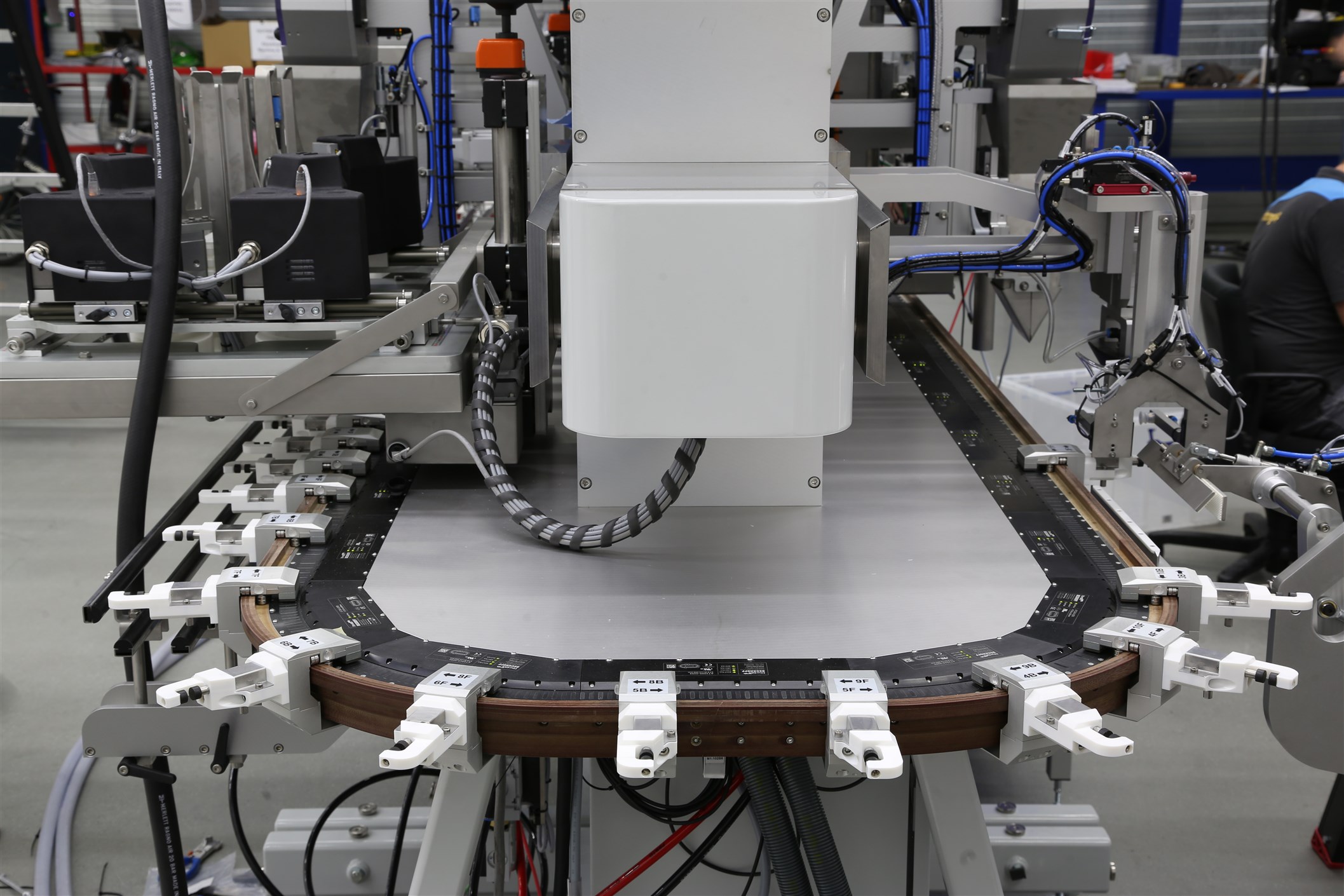

Doysis XTS-track
Doysis XTS-track
Flexible pouch forming, filling and sealing machine Doysis
Flexible pouch forming, filling and sealing machine Doysis

Doysis can handle all heat sealable flexible materials from a reel, to produce a wide range of stand-up pouches.

Doysis horizontal form, fill and seal machine (HFFS) is an advanced flexible stand–up pouch machine which is able to produce a wide range of pouch formats and future shapes. It has the capability to introduce inline complements to the pouches, like zippers, velcro’s to reseal a pouch or add price labels in bottom, front and bag side of the in-line formed pouches.

The new Doysis offers the flexibility to absorb and cover future changes in the Tobacco Products Directive (TPD) that may affect existing packaging concepts.

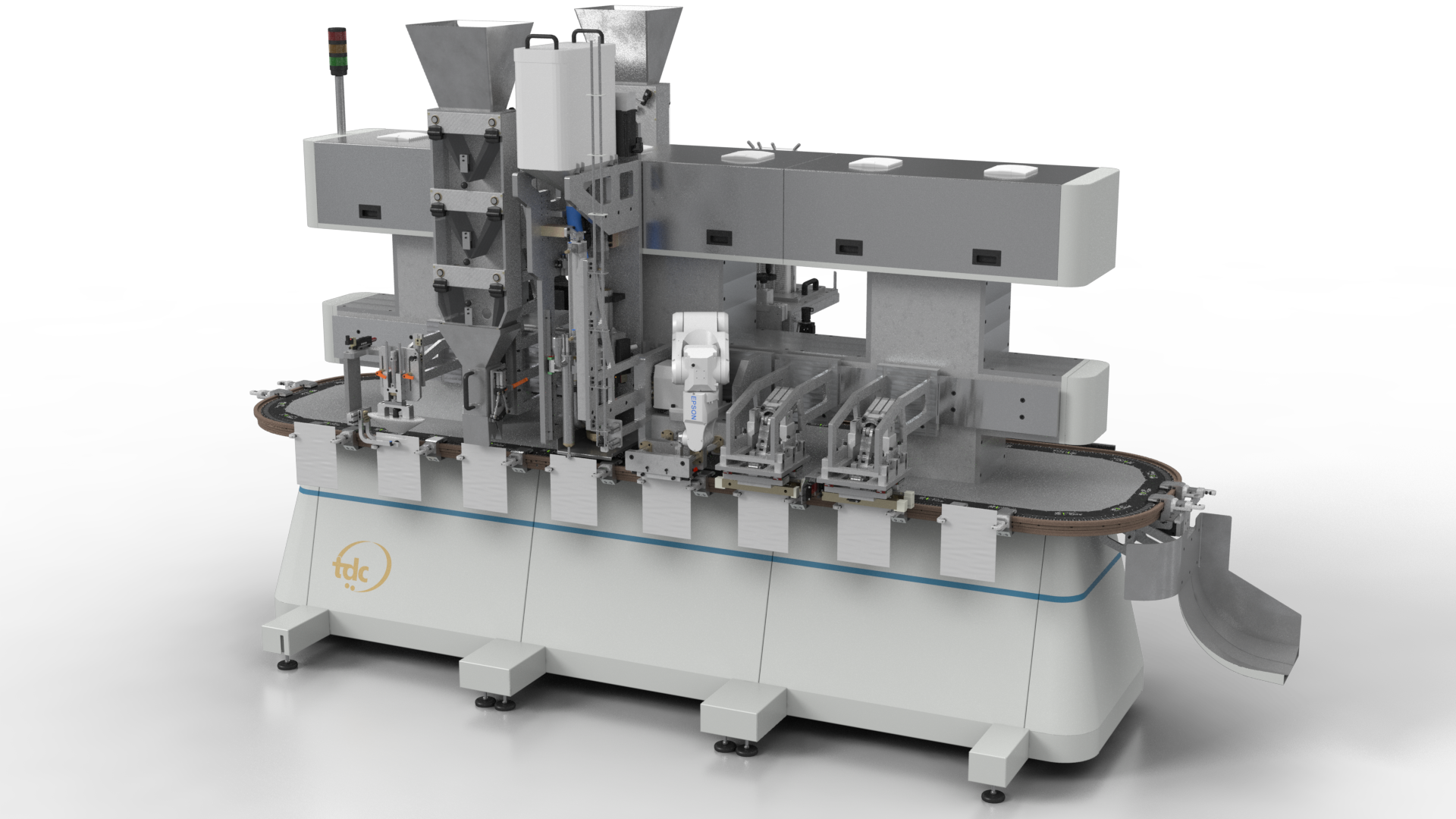

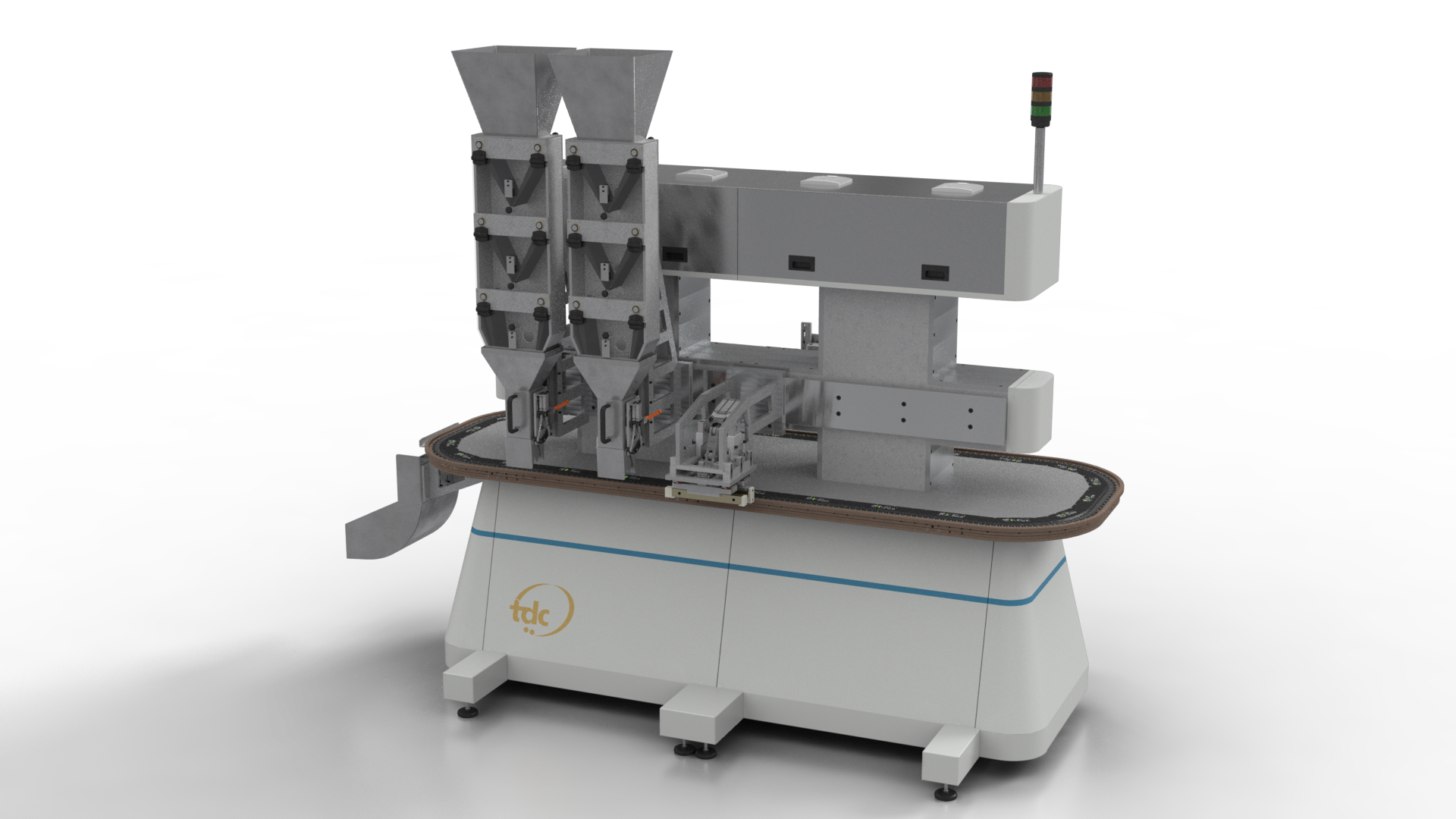

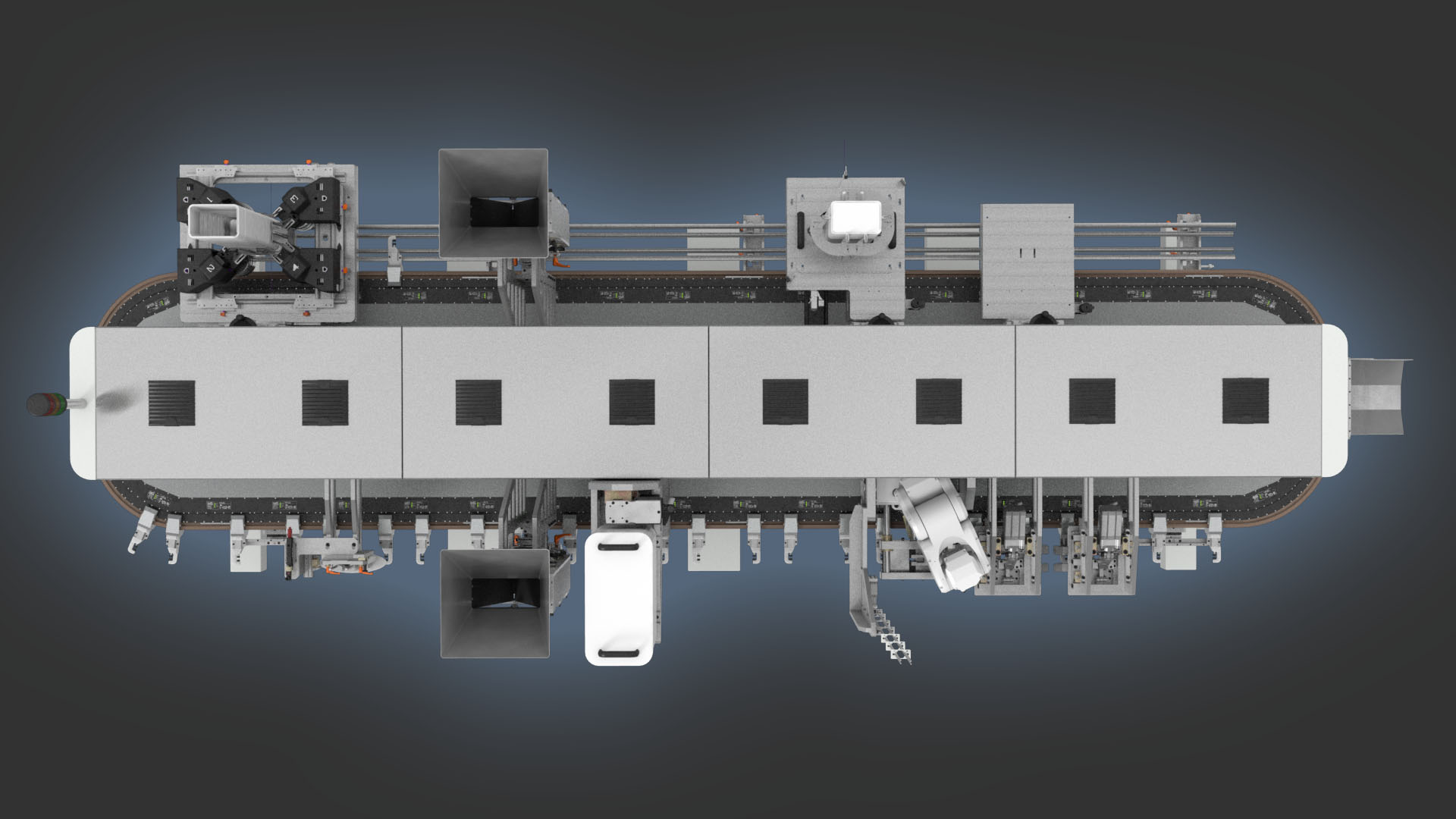

Modular pouch machine

The base for the pouch filling unit is the pouch distribution system for which we use the latest available mechatronics system in the market. A modular fully integrated linear motor with power electronics and displacements measurements in one device. The system is a transport principle that gives immediate advantages as it has absolute precise configuration and individual control of each mover. It will increase production efficiency due to rapid and flexible format adaption.

Technical data
Output
60 pouches per minute
Pouch formats
120 x 145 x (50) mm - 250 x 350 x (100) mm
Maximum reel dimensions
Width: 800 mm / diameter: 600 mm
Core diameter
70/72 mm - 150/152 mm
